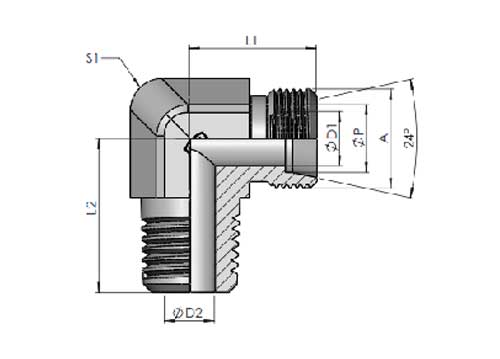

| Tube O.D. | A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L1 | L2 | ØD1 DRILL |
ØD2 DRILL |
ØP | L5 | Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | M12X1.5-6g | R1/8"-28-BSPT-A | 12.00 | 14.00 | 19.00 | 20.00 | 4.00 | 4.00 | 6.0 | 27.00 | XWE06LR | WE06LR | 13-15 | 250 |
| 8 | M14X1.5-6g | R1/4"-19-BSPT-A | 14.00 | 17.00 | 21.00 | 26.00 | 6.00 | 6.00 | 8.00 | 29.00 | XWE08LR | WE08LR | 15-18 | 250 |
| 10 | M16X1.5-6g | R1/4"-19-BSPT-A | 14.00 | 19.00 | 22.00 | 27.00 | 7.00 | 7.00 | 10.00 | 30.00 | XWE10LR | WE10LR | 25-28 | 250 |
| 12 | M18X1.5-6g | R3/8"-19-BSPT-A | 17.00 | 22.00 | 24.00 | 28.00 | 9.00 | 9.00 | 12.00 | 32.00 | XWE12LR | WE12LR | 27-30 | 250 |
| 15 | M22X1.5-6g | R1/2"-14-BSPT-A | 24.00 | 27.00 | 28.00 | 34.00 | 11.00 | 11.00 | 15.00 | 36.00 | XWE15LR | WE15LR | 50-60 | 250 |
| 18 | M26X1.5-6g | R1/2"-14-BSPT-A | 24.00 | 32.00 | 31.00 | 36.00 | 14.00 | 14.00 | 18.00 | 40.00 | XWE18LR | WE18LR | 60-75 | 160 |
| 22 | M30X2.0-6g | G3/4"-14-BSPP-A | 27.00 | 36.00 | 35.00 | 42.00 | 18.00 | 18.00 | 22.00 | 44.00 | XWE22LR | WE22LR | 85-105 | 160 |
| 28 | M36X2.0-6g | G1"-11-BSPP-A | 36.00 | 41.00 | 38.00 | 48.00 | 23.00 | 23.00 | 28.00 | 47.00 | XWE28LR | WE28LR | 120-140 | 100 |
| 35 | M45X2.0-6g | G1-1/4"-11-BSPP-A | 41.00 | 50.00 | 45.00 | 54.00 | 30.00 | 30.00 | 35.00 | 56.00 | XWE35LR | WE35LR | 170-190 | 100 |
| 42 | M52X2.0-6g | G1-1/2"-11-BSPP-A | 50.00 | 60.00 | 51.00 | 61.00 | 36.00 | 36.00 | 42.00 | 63.00 | XWE42LR | WE42LR | 190-230 | 100 |
WE-R-L Male Stud Elbow: Precision and Reliability in Hydraulic Systems
The WE-R-L Male Stud Elbow is an integral part of the L-series, specifically designed to provide high-quality and dependable connections for a wide range of industrial applications. Available in various tube outer diameters and offered in both assembly and body-only configurations, the WE-R-L Male Stud Elbow ensures flexibility and superior performance in your hydraulic and fluid transfer systems.
Key Specifications
- Category : L-series
- TUBE O.D : 06, 08, 10, 12, 15, 18, 22, 28, 35, 42
- Part Type : Assembly, Bodyonly
Additional Information
| Material | Suffix surface and material | Example |
|---|---|---|
| Steel ,Zinc plated chrome (VI)-free | XWE06LR | |
| Steel ,Zinc nickel plated | ZiNi | XWE06LR-ZiNi |
| Stainless Steel-SS316 Ti | SST | XWE06LR-SST |
| Stainless Steel-SS316 | SS316 | XWE06LR-SS |
| Stainless Steel-SS304 | SS304 | XWE06LR-S |
Why Choose G.S. Hydraulics?
Choosing the WE-R-L Male Stud Elbow means investing in a component that excels in precision, durability, and versatility. Its robust construction and precision engineering ensure leak-proof, corrosion-resistant connections that perform reliably under the most demanding conditions. Available in a variety of sizes and part types, the WE-R-L Male Stud Elbow offers the flexibility to meet specific needs, making it a cost-effective and dependable choice for enhancing the performance and safety of your fluid systems.
Enhance your fluid connections with the high-quality and reliable WE-R-L Male Stud Elbow. Contact us today to get a quote and learn more about our products and how they can benefit your specific application needs.
