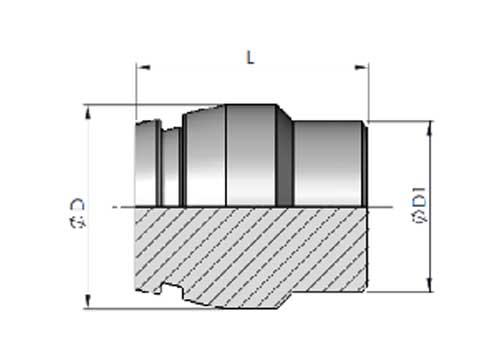

| Tube O.D. | L LENGTH |
ØD1 | ØD | Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
|---|---|---|---|---|---|---|---|
| 6 | 18.50 | 6.00 | 9.90 | XVKA06L | VKA06L | 13-15 | 250 |
| 8 | 18.50 | 8.00 | 11.90 | XVKA08L | VKA08L | 15-18 | 250 |
| 10 | 20.00 | 10.00 | 13.00 | XVKA10L | VKA10L | 25-28 | 250 |
| 12 | 20.50 | 12.00 | 15.00 | XVKA12L | VKA12L | 27-30 | 250 |
| 15 | 20.50 | 15.00 | 18.00 | XVKA15L | VKA15L | 50-60 | 250 |
| 18 | 22.50 | 18.00 | 21.70 | XVKA18L | VKA18L | 60-75 | 160 |
| 22 | 25.00 | 22.00 | 25.70 | XVKA22L | VKA22L | 85-105 | 160 |
| 28 | 25.50 | 28.00 | 31.50 | XVKA28L | VKA28L | 120-140 | 100 |
| 35 | 30.00 | 35.00 | 39.50 | XVKA35L | VKA35L | 170-190 | 100 |
| 42 | 30.00 | 42.00 | 47.00 | XVKA42L | VKA42L | 190-230 | 100 |
VKA-L CAP: Precision and Reliability in Hydraulic Systems
The VKA-L CAP is an essential component designed to provide secure closure and protection for tube ends in various industrial applications. Engineered with durability and functionality in mind, this cap ensures reliable performance and protection of tube fittings.
Key Specifications
- Category : L-series
- TUBE O.D : 06, 08, 10, 12, 15, 18, 22, 28, 35, 42
- Part Type: Assembly, Bodyonly
Additional Information
| Material | Suffix surface and material | Example |
|---|---|---|
| Steel ,Zinc plated chrome (VI)-free | XVKA06L | |
| Steel ,Zinc nickel plated | ZiNi | XVKA06L-ZiNi |
| Stainless Steel-SS316 Ti | SST | XVKA06L-SST |
| Stainless Steel-SS316 | SS316 | XVKA06L-SS |
| Stainless Steel-SS304 | SS304 | XVKA06L-S |
Why Choose G.S. Hydraulics?
Choosing the VKA-L CAP ensures robust construction, effective sealing, and protection for tube ends across various industrial applications. Whether used in machinery, automotive, aerospace, marine, or oil and gas sectors, this component delivers dependable performance and ease of integration.
Discover how the VKA-L CAP can enhance your industrial processes with reliable tube end sealing and protection solutions. Contact our team today to request a quote or receive further details tailored to your needs.
