| Tube O.D. | A THREAD |
S1 Hex |
S2 Hex |
S3 Hex |
L | L1 | ØD DRILL |
ØP | G | L6 | Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | M12X1.5-6g | 17.00 | 17.00 | 14.00 | 48.00 | 34.00 | 4.00 | 6.00 | 5.00 | 64.00 | XSV06L | SV06L | 13-15 | 250 |
| 8 | M14X1.5-6g | 19.00 | 19.00 | 17.00 | 49.00 | 34.00 | 6.00 | 8.00 | 5.50 | 65.00 | XSV08L | SV08L | 15-18 | 250 |
| 10 | M16X1.5-6g | 22.00 | 22.00 | 19.00 | 52.00 | 35.00 | 8.00 | 10.00 | 6.00 | 68.00 | XSV10L | SV10L | 25-28 | 250 |
| 12 | M18X1.5-6g | 24.00 | 24.00 | 22.00 | 53.00 | 36.00 | 10.00 | 12.00 | 7.00 | 69.00 | XSV12L | SV12L | 27-30 | 250 |
| 15 | M22X1.5-6g | 27.00 | 30.00 | 27.00 | 57.00 | 38.00 | 12.00 | 15.00 | 8.00 | 73.00 | XSV15L | SV15L | 50-60 | 250 |
| 18 | M26X1.5-6g | 32.00 | 36.00 | 32.00 | 61.00 | 40.00 | 15.00 | 18.00 | 8.00 | 79.00 | XSV18L | SV18L | 60-75 | 160 |
| 22 | M30X2.0-6g | 36.00 | 41.00 | 36.00 | 66.00 | 42.00 | 19.00 | 22.00 | 10.00 | 84.00 | XSV22L | SV22L | 85-105 | 160 |
| 28 | M36X2.0-6g | 41.00 | 46.00 | 41.00 | 69.00 | 43.00 | 24.00 | 28.00 | 12.00 | 107.00 | XSV28L | SV28L | 120-140 | 100 |
| 35 | M45X2.0-6g | 50.00 | 55.00 | 50.00 | 76.00 | 47.00 | 30.00 | 35.00 | 11.00 | 98.00 | XSV35L | SV35L | 170-190 | 100 |
| 42 | M52X2.0-6g | 60.00 | 65.00 | 60.00 | 77.00 | 47.00 | 36.00 | 42.00 | 14.00 | 101.00 | XSV42L | SV42L | 190-230 | 100 |

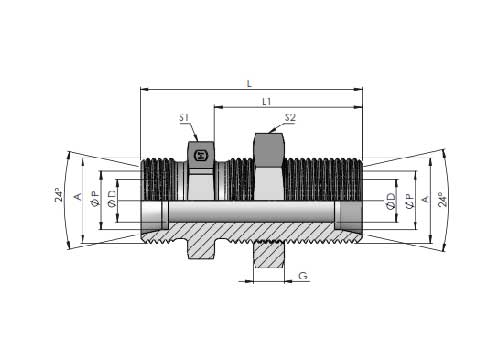

SV-L Bulkhead Straight: Precision and Reliability in Hydraulic Systems
The SV-L Bulkhead Straight is an essential component in the L-series, meticulously designed to provide robust and reliable straight connections through bulkheads in various industrial applications. With multiple tube outer diameters and available in both assembly and body-only configurations, the SV-L Bulkhead Straight ensures flexibility and optimal performance in your hydraulic and fluid transfer systems.
Key Specifications
- Category : L-series
- TUBE O.D : 06, 08, 10, 12, 15, 18, 22, 28, 35, 42
- Part Type : Assembly, Bodyonly
Additional Information
| Material | Suffix surface and material | Example |
|---|---|---|
| Steel ,Zinc plated chrome (VI)-free | XT06L | |
| Steel ,Zinc nickel plated | ZiNi | XT06L-ZiNi |
| Stainless Steel-SS316 Ti | SST | XT06L-SST |
| Stainless Steel-SS316 | SS316 | XT06L-SS |
| Stainless Steel-SS304 | SS304 | XT06L-S |
Why Choose G.S. Hydraulics?
Opting for the SV-L Bulkhead Straight means investing in a component that excels in precision, durability, and versatility. Its robust construction and precision engineering ensure leak-proof, corrosion-resistant straight connections through bulkheads that perform reliably under the most demanding conditions. Available in a variety of sizes and part types, the SV-L Bulkhead Straight offers the flexibility to meet specific needs, making it a cost-effective and dependable choice for enhancing the performance and safety of your fluid systems.
Enhance your fluid connections with the high-quality and reliable SV-L Bulkhead Straight. Contact us today to get a quote and learn more about our products and how they can benefit your specific application needs.
