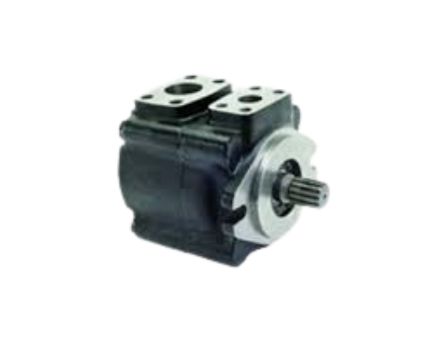

Single Vane Pumps - VTXB
| Model No. | VTXB |
| Maximum Pressure (psi) | 3000 |
| Maximum Pressure (bar) | 210 |
| Max. Displacement (in³/rev) | 0.40 - 2.80 |
| Max. Displacement (cm³/rev) | 6 - 46 |
| Maximum Speed rpm | 2500 |
| Mounting Standard | SAE - A |

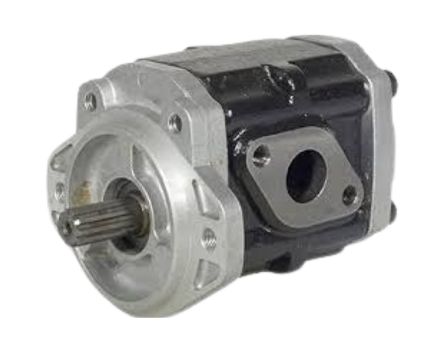

Single Vane Pumps - VT6B
| Model No. | VT6B |
| Maximum Pressure (psi) | 3500 |
| Maximum Pressure (bar) | 240 |
| Max. Displacement (in³/rev) | 0.40 - 2.42 |
| Max. Displacement (cm³/rev) | 6 - 40 |
| Maximum Speed rpm | 2500 |
| Mounting Standard | SAE - A |

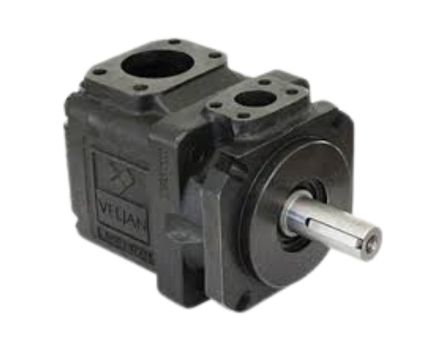

Single Vane Pumps - VT6C
| Model No. | VT6C |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 0.66 - 6.10 |
| Max. Displacement (cm³/rev) | 11 - 100 |
| Maximum Speed rpm | 2800 |
| Mounting Standard | SAE - B |

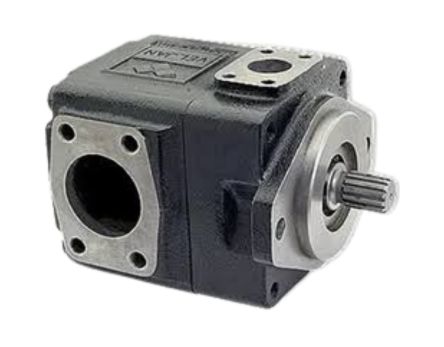

Single Vane Pumps - VT6CSH
| Model No. | VT6CSH |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 0.66 - 6.10 |
| Max. Displacement (cm³/rev) | 11 - 100 |
| Maximum Speed rpm | 2800 |
| Mounting Standard | SAE - B |

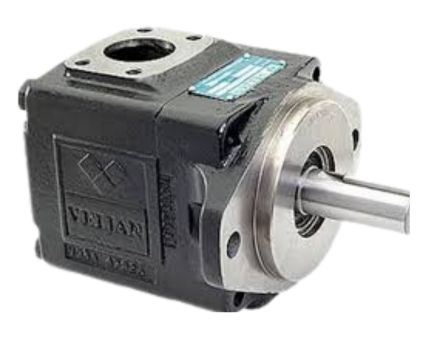

Single Vane Pumps - VT6D
| Model No. | VT6D |
| Maximum Pressure (psi) | 3500 |
| Maximum Pressure (bar) | 240 |
| Max. Displacement (in³/rev) | 2.90 - 11.62 |
| Max. Displacement (cm³/rev) | 48 - 190 |
| Maximum Speed rpm | 2500 |
| Mounting Standard | SAE - C |

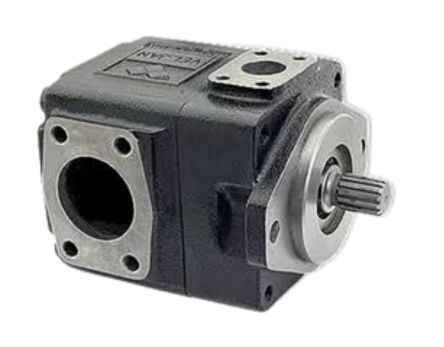

Single Vane Pumps - VT6E
| Model No. | VT6E |
| Maximum Pressure (psi) | 3500 |
| Maximum Pressure (bar) | 240 |
| Max. Displacement (in³/rev) | 8.07 - 16.40 |
| Max. Displacement (cm³/rev) | 132 - 270 |
| Maximum Speed rpm | 2200 |
| Mounting Standard | SAE - C |

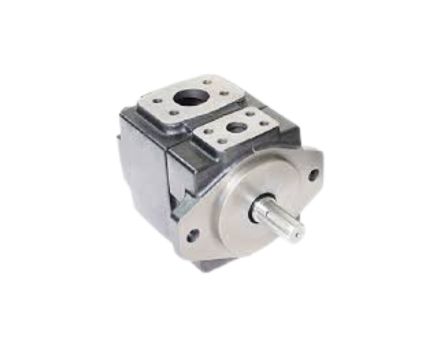

Single Vane Pumps - VT6CM
| Model No. | VT6CM |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 0.66 - 6.10 |
| Max. Displacement (cm³/rev) | 11 - 100 |
| Maximum Speed rpm | 2800 |
| Mounting Standard | SAE - B |

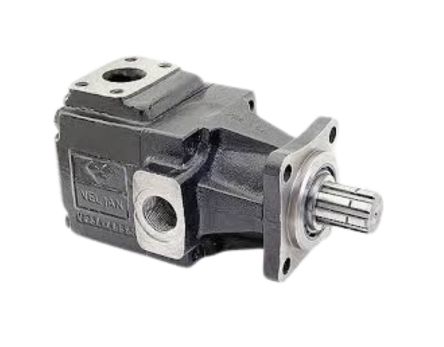

Single Vane Pumps - VT6GC
| Model No. | VT6GC |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 0.66 - 6.10 |
| Max. Displacement (cm³/rev) | 11 - 100 |
| Maximum Speed rpm | 2800 |
| Mounting Standard | R.17 - 102 |

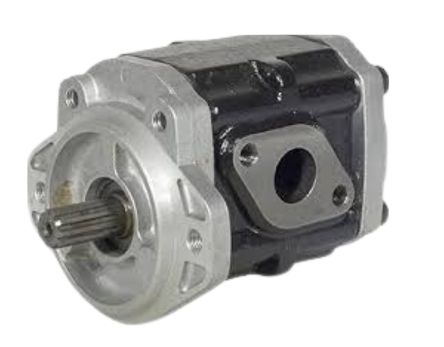

Single Vane Pumps - VT6CP
| Model No. | VT6CP |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 0.66 - 6.10 |
| Max. Displacement (cm³/rev) | 11 - 100 |
| Maximum Speed rpm | 2800 |
| Mounting Standard | SAE - C |

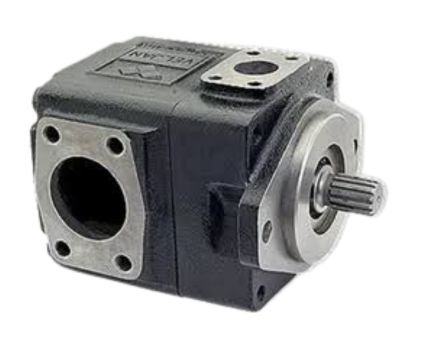

Single Vane Pumps - VT6DM
| Model No. | VT6DM |
| Maximum Pressure (psi) | 3500 |
| Maximum Pressure (bar) | 240 |
| Max. Displacement (in³/rev) | 2.90 - 11.62 |
| Max. Displacement (cm³/rev) | 48 - 190 |
| Maximum Speed rpm | 2500 |
| Mounting Standard | SAE - C |

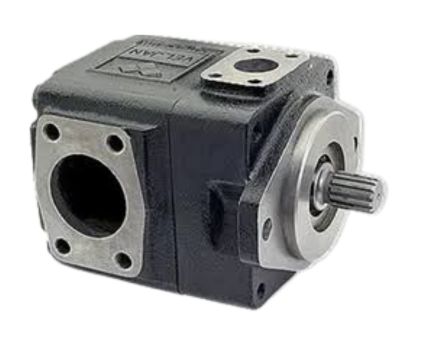

Single Vane Pumps - VT6EM
| Model No. | VT6EM |
| Maximum Pressure (psi) | 3500 |
| Maximum Pressure (bar) | 240 |
| Max. Displacement (in³/rev) | 8.07 - 16.40 |
| Max. Displacement (cm³/rev) | 132 - 270 |
| Maximum Speed rpm | 2200 |
| Mounting Standard | SAE - C |

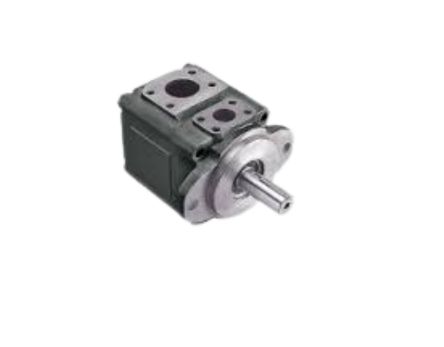

Single Vane Pumps - VT7AS
| Model No. | VT7AS |
| Maximum Pressure (psi) | 4600 |
| Maximum Pressure (bar) | 320 |
| Max. Displacement (in³/rev) | 0.38 - 1.57 |
| Max. Displacement (cm³/rev) | 6.1 - 25.8 |
| Maximum Speed rpm | 3600 |
| Mounting Standard | SAE - B |

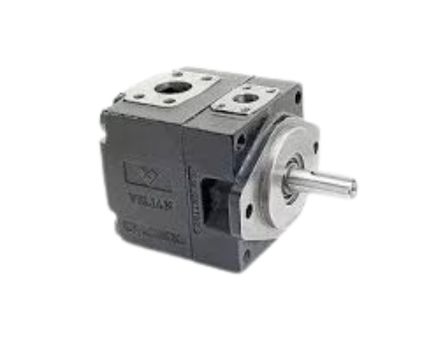

Single Vane Pumps - VT7B / VT7BS
| Model No. | VT7B / VT7BS |
| Maximum Pressure (psi) | 4650 |
| Maximum Pressure (bar) | 320 |
| Max. Displacement (in³/rev) | 0.35 - 3.05 |
| Max. Displacement (cm³/rev) | 6.0 - 50 |
| Maximum Speed rpm | 3600 |
| Mounting Standard | SAE - B |

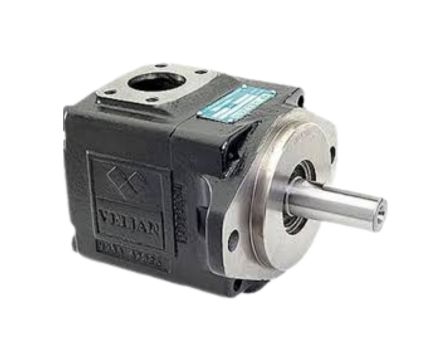

Single Vane Pumps - VT7QC1 / VT7QC2
| Model No. | VT7QC1 / VT7QC2 |
| Maximum Pressure (psi) | 4350 |
| Maximum Pressure (bar) | 300 |
| Max. Displacement (in³/rev) | 0.66 - 6.10 |
| Max. Displacement (cm³/rev) | 11 - 100 |
| Maximum Speed rpm | 3000 |
| Mounting Standard | SAE - B |

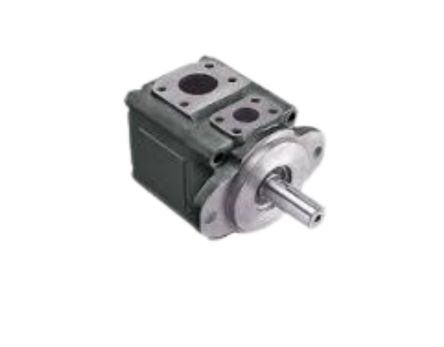

Single Vane Pumps - VT7D / VT7DS
| Model No. | VT7D / VT7DS |
| Maximum Pressure (psi) | 4350 |
| Maximum Pressure (bar) | 300 |
| Max. Displacement (in³/rev) | 2.68 - 9.64 |
| Max. Displacement (cm³/rev) | 44 - 158 |
| Maximum Speed rpm | 3000 |
| Mounting Standard | SAE - C |

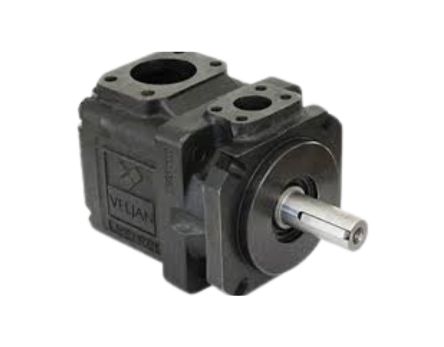

Single Vane Pumps - VT7DSW
| Model No. | VT7DSW |
| Maximum Pressure (psi) | 4350 |
| Maximum Pressure (bar) | 300 |
| Max. Displacement (in³/rev) | 2.68 - 9.64 |
| Max. Displacement (cm³/rev) | 44 - 158 |
| Maximum Speed rpm | 3000 |
| Mounting Standard | SAE - C |

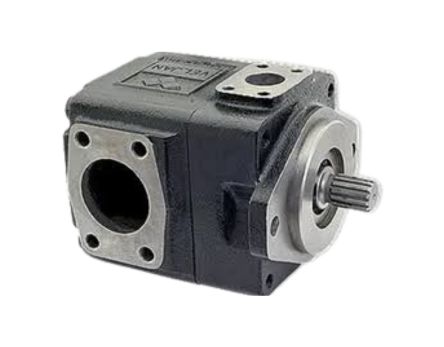

Single Vane Pumps - VT7E / VT7ES
| Model No. | VT7E / VT7ES |
| Maximum Pressure (psi) | 3500 |
| Maximum Pressure (bar) | 240 |
| Max. Displacement (in³/rev) | 8.07 - 16.40 |
| Max. Displacement (cm³/rev) | 132 - 270 |
| Maximum Speed rpm | 2200 |
| Mounting Standard | SAE - C |
