| Tube O.D. | A THREAD |
B THREAD |
S1 Hex |
S2 Hex |

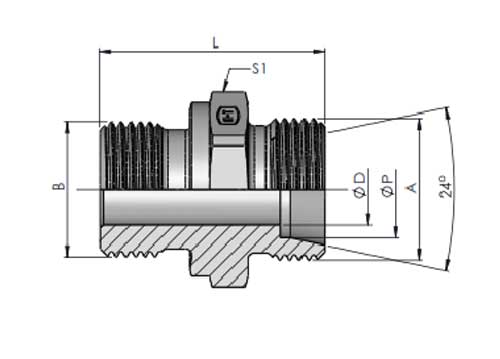

L | ØD DRILL |
ØP | L3 | L4 | Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | M12X1.5-6g | M10X1.0-6g | 14.00 | 14.00 | 23.50 | 4.00 | 6.00 | 8.00 | 23.00 | XGE06LM | GE06LM | 13-15 | 250 |
| 8 | M14X1.5-6g | M12X1.5-6g | 17.00 | 17.00 | 29.00 | 6.00 | 8.00 | 12.00 | 25.00 | XGE08LM | GE08LM | 15-18 | 250 |
| 10 | M16X1.5-6g | M14X1.5-6g | 19.00 | 19.00 | 30.00 | 7.00 | 10.00 | 12.00 | 26.00 | XGE10LM | GE10LM | 25-28 | 250 |
| 12 | M18X1.5-6g | M16X1.5-6g | 22.00 | 22.00 | 31.50 | 9.00 | 12.00 | 12.00 | 27.00 | XGE12LM | GE12LM | 27-30 | 250 |
| 15 | M22X1.5-6g | M18X1.5-6g | 24.00 | 27.00 | 32.50 | 11.00 | 15.00 | 12.00 | 29.00 | XGE15LM | GE15LM | 50-60 | 250 |
| 18 | M26X1.5-6g | M22X1.5-6g | 27.00 | 32.00 | 36.00 | 14.00 | 18.00 | 14.00 | 31.00 | XGE18LM | GE18LM | 60-75 | 160 |
| 22 | M30X2.0-6g | M26X1.5-6g | 32.00 | 36.00 | 40.00 | 18.00 | 22.00 | 16.00 | 33.00 | XGE22LM | GE22LM | 85-105 | 160 |
| 28 | M36X2.0-6g | M33X2.0-6g | 41.00 | 41.00 | 43.00 | 23.00 | 28.00 | 18.00 | 34.00 | XGE28LM | GE28LM | 120-140 | 100 |
| 35 | M45X2.0-6g | M42X2.0-6g | 50.00 | 50.00 | 48.00 | 30.00 | 35.00 | 20.00 | 39.00 | XGE35LM | GE35LM | 170-190 | 100 |
| 42 | M52X2.0-6g | M48X2.0-6g | 55.00 | 60.00 | 52.00 | 36.00 | 42.00 | 22.00 | 42.00 | XGE42LM | GE42LM | 190-230 | 100 |
GE-M-L Parallel Male Stud: Precision and Reliability in Hydraulic Systems
The GE-M-L Parallel Male Stud is a key component in the L-series, designed to offer precision and reliability in parallel male stud connections for a variety of industrial applications. Available in multiple tube outer diameters and offered in both assembly and body-only configurations, the GE-M-L Parallel Male Stud ensures versatility and optimal performance in your hydraulic and fluid transfer systems.
Key Specifications
- Category : L-series
- TUBE O.D : 06, 08, 10, 12, 15, 18, 22, 28, 35, 42
- Part Type : Assembly, Bodyonly
Additional Information
| Material | Suffix surface and material | Example |
|---|---|---|
| Steel ,Zinc plated chrome (VI)-free | XGE06SM | |
| Steel ,Zinc nickel plated | ZiNi | XGE06SM-ZiNi |
| Stainless Steel-SS316 Ti | SST | XGE06SM-SST |
| Stainless Steel-SS316 | SS316 | XGE06SM-SS |
| Stainless Steel-SS304 | SS304 | XGE06SM-S |
Why Choose G.S. Hydraulics?
Opting for the GE-M-L Parallel Male Stud means investing in a component that excels in precision, durability, and versatility. Its robust construction and precision engineering ensure leak-proof, corrosion-resistant parallel male stud connections that perform reliably under the most demanding conditions. Available in a variety of sizes and part types, the GE-M-L Parallel Male Stud offers the flexibility to meet specific needs, making it a cost-effective and dependable choice for enhancing the performance and safety of your fluid systems.
Enhance your fluid connections with the high-quality and reliable GE-M-L Parallel Male Stud. Contact us today to get a quote and learn more about our products and how they can benefit your specific application needs.
