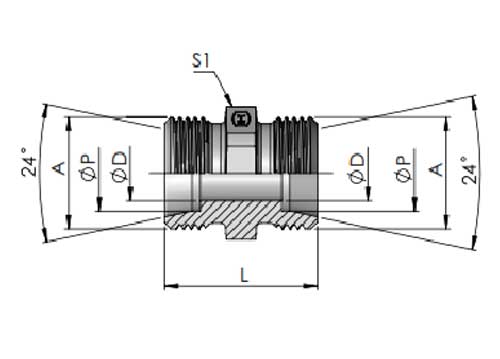

| Tube O.D. | A THREAD |
S1 Hex |
S2 Hex |
L Length |
ØD DRILL |
ØP | L3 | Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar | 6 | M14X1.5-6g | 14.00 | 17.00 | 30.00 | 4.00 | 6.00 | 45.00 | XG06S | G06S | 14-16 | 630 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | M16X1.5-6g | 17.00 | 19.00 | 32.00 | 5.00 | 8.00 | 47.00 | XG08S | G08S | 25-28 | 630 |
| 10 | M18X1.5-6g | 19.00 | 22.00 | 32.00 | 7.00 | 10.00 | 49.00 | XG10S | G10S | 27-30 | 630 |
| 12 | M20X1.5-6g | 22.00 | 24.00 | 34.00 | 8.00 | 12.00 | 51.00 | XG12S | G12S | 43-54 | 630 |
| 16 | M24X1.5-6g | 27.00 | 30.00 | 38.00 | 12.00 | 16.00 | 57.00 | XG16S | G16S | 60-75 | 400 |
| 20 | M30X2.0-6g | 32.00 | 36.00 | 44.00 | 16.00 | 20.00 | 66.00 | XG20S | G20S | 90-110 | 400 |
| 25 | M36X2.0-6g | 41.00 | 46.00 | 50.00 | 20.00 | 25.00 | 74.00 | XG25S | G25S | 125-145 | 400 |
| 30 | M42X2.0-6g | 46.00 | 50.00 | 54.00 | 25.00 | 30.00 | 80.00 | XG30S | G30S | 170-190 | 250 |
| 38 | M52X2.0-6g | 55.00 | 60.00 | 61.00 | 32.00 | 38.00 | 90.00 | XG38S | G38S | 200-245 | 250 |
G-S-Equal Straight Coupling: Precision and Reliability in Hydraulic Systems
The G-S Equal Straight is a high-performance coupling in the S-series, meticulously designed to provide reliable and durable connections across a variety of industrial applications. Available in a range of tube outer diameters and offered in both assembly and body-only configurations, the G-S Equal Straight ensures precision and optimal performance in your hydraulic and fluid transfer systems.
Key Specifications
- Category : S-series
- TUBE O.D : 06, 08, 10, 12, 14, 16, 20, 25, 30, 38
- Part Type : Assembly, Bodyonly
Additional Information
| Material | Suffix surface and material | Example |
|---|---|---|
| Steel ,Zinc plated chrome (VI)-free | XW06L | |
| Steel ,Zinc nickel plated | ZiNi | XW06L-ZiNi |
| Stainless Steel-SS316 Ti | SST | XW06L-SST |
| Stainless Steel-SS316 | SS316 | XW06L-SS |
| Stainless Steel-SS304 | SS304 | XW06L-S |
Why Choose G.S. Hydraulics?
Selecting the G-S-Equal Straight Coupling means choosing a component that excels in precision, durability, and versatility. Its robust construction and precision engineering guarantee leak-proof, corrosion-resistant connections that perform reliably under the most demanding conditions. The range of available sizes ensures compatibility with various applications, making the G-S-Equal Straight Coupling a cost-effective and reliable choice for enhancing the performance and safety of your fluid systems.
Upgrade your fluid connections with the high-quality and dependable G-L-Equal Straight. Contact us today to learn more about our products and how they can benefit your specific application needs.
