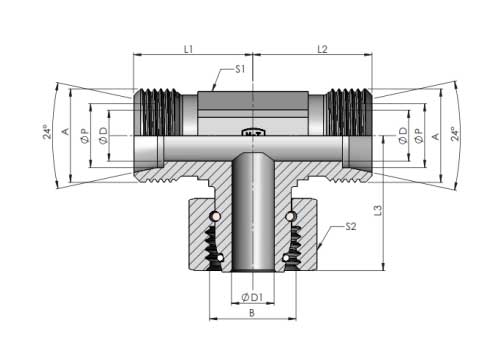

| Tube O.D. | A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
S3 Hex |
L1 L2 |
L3 | L4 | ØD | ØD1 | ØP | Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | M16X1.5-6g | M16X1.5-6H | 14.00 | 19.00 | 19.00 | 24.00 | 27.00 | 32.00 | 5.00 | 4.00 | 8.00 | XET08S | ET08S | 38-42 | 400 |
| 10 | M18X1.5-6g | M18X1.5-6H | 17.00 | 22.00 | 22.00 | 25.00 | 29.50 | 34.00 | 7.00 | 6.00 | 10.00 | XET10S | ET10S | 47-53 | 400 |
| 12 | M20X1.5-6g | M20X1.5-6H | 17.00 | 24.00 | 24.00 | 29.00 | 30.50 | 38.00 | 8.00 | 8.00 | 12.00 | XET12S | ET12S | 57-63 | 400 |
| 16 | M24X1.5-6g | M24X1.5-6H | 24.00 | 30.00 | 30.00 | 33.00 | 36.00 | 43.00 | 12.00 | 11.00 | 16.00 | XET16S | ET16S | 80-90 | 400 |
| 20 | M30X2.0-6g | M30X2.0-6H | 27.00 | 36.00 | 36.00 | 37.00 | 44.00 | 48.00 | 16.00 | 14.00 | 20.00 | XET20S | ET20S | 133-147 | 400 |
| 25 | M36X2.0-6g | M36X2.0-6H | 36.00 | 46.00 | 46.00 | 42.00 | 49.50 | 54.00 | 20.00 | 18.00 | 25.00 | XET25S | ET25S | 180-200 | 400 |
| 30 | M42X2.0-6g | M42X2.0-6H | 41.00 | 50.00 | 50.00 | 49.00 | 55.00 | 62.00 | 25.00 | 23.00 | 30.00 | XET30S | ET30S | 257-283 | 250 |
| 38 | M52X2.0-6g | M52X2.0-6H | 50.00 | 60.00 | 60.00 | 57.00 | 63.00 | 72.00 | 32.00 | 30.00 | 38.00 | XET38S | ET38S | 257-283 | 250 |
ET-S Swivel Nut Branch Tee: Precision and Reliability in Hydraulic Systems
The ET-S Swivel Nut Branch Tee is a vital component of the S-series, meticulously engineered to provide superior flexibility and robust performance across various industrial applications. With a range of tube outer diameters and available in both assembly and body-only configurations, the ET-S Swivel Nut Branch Tee ensures optimal functionality and reliability in your hydraulic and fluid transfer systems.
Key Specifications
- Category : S-series
- TUBE O.D : 08, 10, 12, 16, 20, 25, 30, 38
- Part Type : Assembly, Bodyonly
Additional Information
| Material | Suffix surface and material | Example |
|---|---|---|
| Steel ,Zinc plated chrome (VI)-free | XET08L | |
| Steel ,Zinc nickel plated | ZiNi | XET08L-ZiNi |
| Stainless Steel-SS316 Ti | SST | XET08L-SST |
| Stainless Steel-SS316 | SS316 | XET08L-SS |
| Stainless Steel-SS304 | SS304 | XET08L-S |
Why Choose G.S. Hydraulics?
Choosing the ET-S Swivel Nut Branch Tee means opting for a component that excels in precision, durability, and versatility. Its robust construction and precision engineering ensure leak-proof, corrosion-resistant connections that perform reliably under the most demanding conditions. Available in various sizes and part types, the ET-S Swivel Nut Branch Tee offers flexibility to meet specific needs, making it a cost-effective and dependable choice for enhancing the performance and safety of your fluid systems.
Upgrade your fluid connections with the high-quality and reliable ET-S Swivel Nut Branch Tee. Contact us today to get a quote and learn more about our products and how they can benefit your specific application needs.
