| Tube O.D. | A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
S3 Hex |
L1 L2 |
L3 | L4 | ØD | ØD1 | ØP | Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | M14X1.5-6g | M14X1.5-6H | 14.00 | 17.00 | 17.00 | 21.00 | 27.00 | 29.00 | 6.00 | 4.00 | 8.00 | XEL08L | EL08L | 14-18 | 250 |
| 10 | M16X1.5-6g | M16X1.5-6H | 14.00 | 19.00 | 19.00 | 22.00 | 28.50 | 30.00 | 8.00 | 6.00 | 10.00 | XEL10L | EL10L | 23-27 | 250 |
| 12 | M18X1.5-6g | M18X1.5-6H | 17.00 | 22.00 | 22.00 | 24.00 | 29.00 | 32.00 | 10.00 | 8.00 | 12.00 | XEL12L | EL12L | 29-34 | 250 |
| 15 | M22X1.5-6g | M22X1.5-6H | 19.00 | 27.00 | 27.00 | 28.00 | 32.00 | 36.00 | 12.00 | 10.00 | 15.00 | XEL15L | EL15L | 38-42 | 250 |
| 18 | M26X1.5-6g | M26X1.5-6H | 24.00 | 32.00 | 32.00 | 31.00 | 35.00 | 40.00 | 15.00 | 14.00 | 18.00 | XEL18L | EL18L | 48-52 | 160 |
| 22 | M30X2.0-6g | M30X2.0-6H | 27.00 | 36.00 | 36.00 | 35.00 | 38.00 | 44.00 | 19.00 | 18.00 | 22.00 | XEL22L | EL22L | 75-80 | 160 |
| 28 | M36X2.0-6g | M36X2.0-6H | 36.00 | 41.00 | 41.00 | 38.00 | 41.50 | 47.00 | 24.00 | 22.00 | 28.00 | XEL28L | EL28L | 110-120 | 100 |
| 35 | M45X2.0-6g | M45X2.0-6H | 41.00 | 50.00 | 50.00 | 45.00 | 51.00 | 56.00 | 30.00 | 28.00 | 35.00 | XEL35L | EL35L | 150-160 | 100 |
| 42 | M52X2.0-6g | M52X2.0-6H | 50.00 | 60.00 | 60.00 | 51.00 | 56.00 | 63.00 | 36.00 | 34.00 | 42.00 | XEL42L | EL42L | 150-160 | 100 |

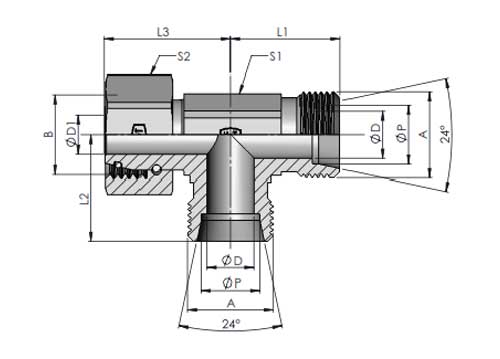

EL-L Swivel Nut Run Tee: Precision and Reliability in Hydraulic Systems
The EL-L Swivel Nut Run Tee is a versatile component designed for robust hydraulic and fluid transfer systems within the L-series category. Engineered to provide reliable performance and ease of installation, this swivel nut run tee is suitable for a wide range of industrial applications where precise fluid routing is essential.
Key Specifications
- Category : L-series
- TUBE O.D : 08, 10, 12, 15, 22, 28, 35, 42
- Part Type : Assembly, Bodyonly
Additional Information
| Material | Suffix surface and material | Example |
|---|---|---|
| Steel ,Zinc plated chrome (VI)-free | XEL08L | |
| Steel ,Zinc nickel plated | ZiNi | XEL08L-ZiNi |
| Stainless Steel-SS316 Ti | SST | XEL08L-SST |
| Stainless Steel-SS316 | SS316 | XEL08L-SS |
| Stainless Steel-SS304 | SS304 | XEL08L-S |
Why Choose G.S. Hydraulics?
Choosing the EL-L Swivel Nut Run Tee ensures superior performance, durability, and versatility for your fluid transfer needs. Whether used in manufacturing, automotive, aerospace, or other industrial sectors, this component delivers reliable operation and ease of maintenance.
Discover how the EL-L Swivel Nut Run Tee can enhance your fluid system reliability and efficiency. Reach out to our team today to get started or request a quote for your project needs.
