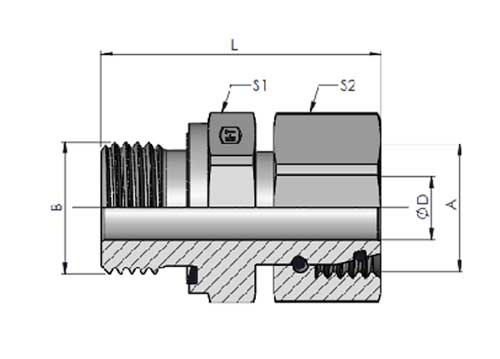

| Tube O.D. | A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L | ØD DRILL |
Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|
| 8 | M14X1.5-6H | M12X1.5-6g | 17.00 | 17.00 | 38.50 | 4.00 | XEGE08LMED | EGE08LMED | 15-18 | 250 |
| 10 | M16X1.5-6H | M14X1.5-6g | 19.00 | 19.00 | 38.50 | 6.00 | XEGE10LMED | EGE10LMED | 25-28 | 250 |
| 12 | M18X1.5-6H | M16X1.5-6g | 22.00 | 22.00 | 41.00 | 7.50 | XEGE12LMED | EGE12LMED | 27-30 | 250 |
| 15 | M22X1.5-6H | M18X1.5-6g | 24.00 | 27.00 | 42.50 | 10.00 | XEGE15LMED | EGE15LMED | 50-60 | 250 |
| 18 | M26X1.5-6H | M22X1.5-6g | 27.00 | 32.00 | 44.20 | 14.00 | XEGE18LMED | EGE18LMED | 60-75 | 160 |
| 22 | M30X2.0-6H | M26X1.5-6g | 32.00 | 36.00 | 47.20 | 18.00 | XEGE22LMED | EGE22LMED | 85-105 | 160 |
| 28 | M36X2.0-6H | M33X2.0-6g | 41.00 | 41.00 | 52.00 | 22.00 | XEGE28LMED | EGE28LMED | 120-140 | 100 |
| 35 | M45X2.0-6H | M42X2.0-6g | 50.00 | 50.00 | 61.00 | 28.00 | XEGE35LMED | EGE35LMED | 170-190 | 100 |
| 42 | M52X2.0-6H | M48X2.0-6g | 50.00 | 60.00 | 66.30 | 36.00 | XEGE42LMED | EGE42LMED | 190-230 | 100 |
EGE-M-L Swivel Connector: Precision and Reliability in Hydraulic Systems
The EGE-M-L Swivel Connector is a crucial component in the L-series, meticulously designed to offer superior flexibility and reliable performance for various industrial applications. Available in a range of tube outer diameters and offered in both assembly and body-only configurations, the EGE-M-L Swivel Connector ensures optimal performance in your hydraulic and fluid transfer systems.
Key Specifications
- Category : L-series
- TUBE O.D : 08, 10, 12, 15, 18, 22, 28, 35, 42
- Part Type : Assembly, Bodyonly
Additional Information
| Material | Suffix surface and material | Example |
|---|---|---|
| Steel ,Zinc plated chrome (VI)-free | XEGE08LMED | |
| Steel ,Zinc nickel plated | ZiNi | XEGE08LMED-ZiNi |
| Stainless Steel-SS316 Ti | SST | XEGE08LMED-SST |
| Stainless Steel-SS316 | SS316 | XEGE08LMED-SS |
| Stainless Steel-SS304 | SS304 | XEGE08LMED-S |
Why Choose G.S. Hydraulics?
Opting for the EGE-M-L Swivel Connector means selecting a component that stands out in precision, durability, and versatility. Its robust construction and precision engineering ensure leak-proof, corrosion-resistant connections that perform reliably under the most demanding conditions. Available in various sizes and part types, the EGE-M-L Swivel Connector offers the flexibility to meet specific needs, making it a cost-effective and dependable choice for enhancing the performance and safety of your fluid systems.
Upgrade your fluid connections with the high-quality and reliable EGE-M-L Swivel Connector. Contact us today to get a quote and learn more about our products and how they can benefit your specific application needs.
