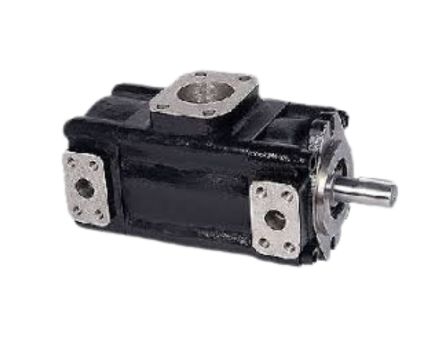

Double Vane Pumps - VTXBB
| Model No. | VTXBB |
| Maximum Pressure (psi) | 3000 |
| Maximum Pressure (bar) | 210 |
| Max. Displacement (in³/rev) | 0.79 - 5.61 |
| Max. Displacement (cm³/rev) | 12 - 92 |
| Maximum Speed rpm | 2500 |
| Mounting Standard | SAE - A / SAE - B |

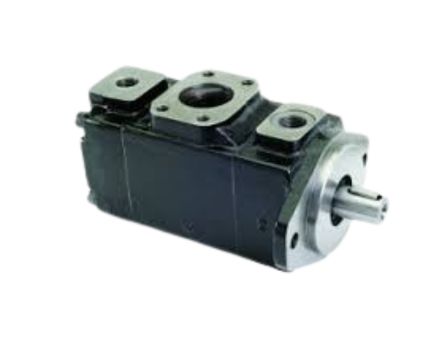

Double Vane Pumps - VT6BB
| Model No. | VT6BB |
| Maximum Pressure (psi) | 3500 |
| Maximum Pressure (bar) | 240 |
| Max. Displacement (in³/rev) | 0.79 - 5.61 |
| Max. Displacement (cm³/rev) | 12 - 92 |
| Maximum Speed rpm | 2500 |
| Mounting Standard | SAE - B |

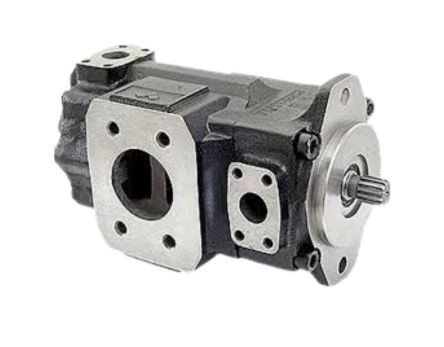

Double Vane Pumps - VT6CB
| Model No. | VT6CB |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 1.05 - 8.52 |
| Max. Displacement (cm³/rev) | 17 - 140 |
| Maximum Speed rpm | 2500 |
| Mounting Standard | SAE - B |

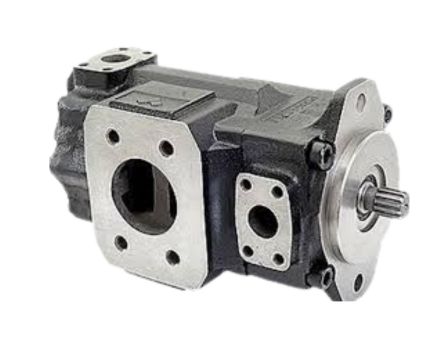

Double Vane Pumps - VT6CC
| Model No. | VT6CC |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 1.32 - 12.20 |
| Max. Displacement (cm³/rev) | 22.0 - 200 |
| Maximum Speed rpm | 2800 |
| Mounting Standard | SAE - B |

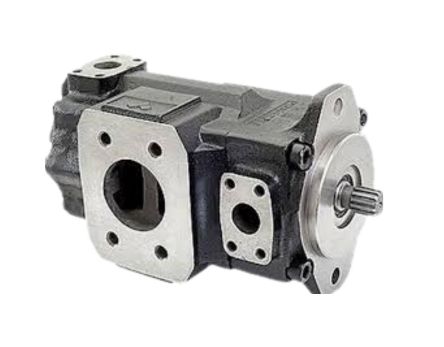

Double Vane Pumps - VT6CCSH
| Model No. | VT6CCSH |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 1.32 - 12.20 |
| Max. Displacement (cm³/rev) | 22.0 - 200 |
| Maximum Speed rpm | 2800 |
| Mounting Standard | SAE - B |

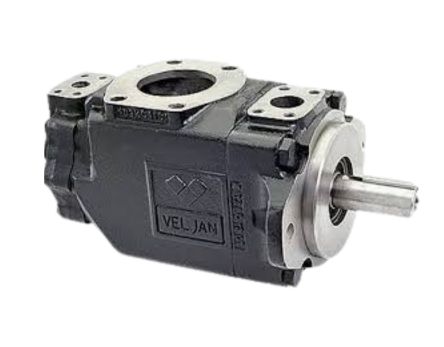

Double Vane Pumps - VT6DC
| Model No. | VT6DC |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 3.56 - 17.75 |
| Max. Displacement (cm³/rev) | 59.0 - 290 |
| Maximum Speed rpm | 2500 |
| Mounting Standard | SAE - C |
Double Vane Pumps - VT6DDS
| Model No. | VT6DDS |
| Maximum Pressure (psi) | 3500 |
| Maximum Pressure (bar) | 240 |
| Max. Displacement (in³/rev) | 5.80 - 23.3 |
| Max. Displacement (cm³/rev) | 96.0 - 380 |
| Maximum Speed rpm | 2500 |
| Mounting Standard | SAE - C |

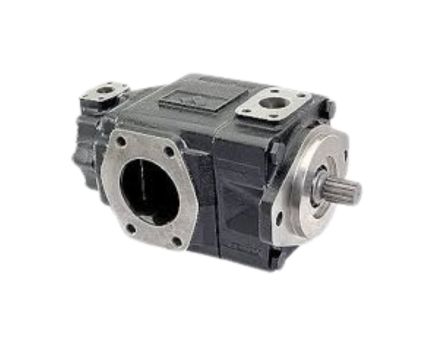

Double Vane Pumps - VT6EC
| Model No. | VT6EC |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 8.73 - 22.56 |
| Max. Displacement (cm³/rev) | 143 - 370 |
| Maximum Speed rpm | 2200 |
| Mounting Standard | SAE - C |

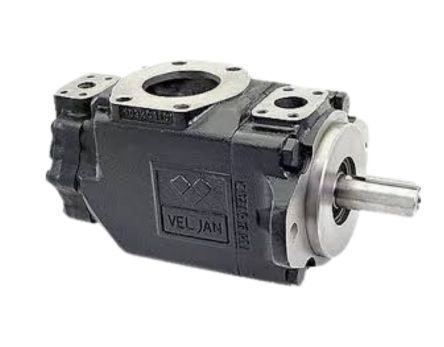

Double Vane Pumps - VT6ED
| Model No. | VT6ED |
| Maximum Pressure (psi) | 3500 |
| Maximum Pressure (bar) | 240 |
| Max. Displacement (in³/rev) | 11.0 - 28.06 |
| Max. Displacement (cm³/rev) | 180 - 460 |
| Maximum Speed rpm | 2200 |
| Mounting Standard | SAE - C |
Double Vane Pumps - VT6EE
| Model No. | VT6EE |
| Maximum Pressure (psi) | 3500 |
| Maximum Pressure (bar) | 240 |
| Max. Displacement (in³/rev) | 16.1 - 32.8 |
| Max. Displacement (cm³/rev) | 264 - 540 |
| Maximum Speed rpm | 2200 |
| Mounting Standard | ISO / SAE - E |

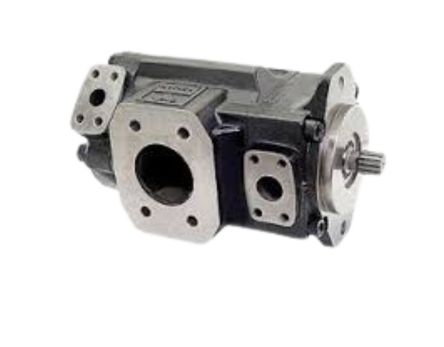

Double Vane Pumps - VT6CCM
| Model No. | VT6CCM |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 1.32 - 12.20 |
| Max. Displacement (cm³/rev) | 22 - 200 |
| Maximum Speed rpm | 2800 |
| Mounting Standard | SAE - B |

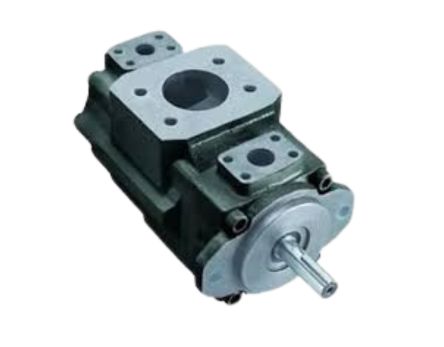

Double Vane Pumps - VT6CCZ
| Model No. | VT6CCZ |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 1.32 - 12.20 |
| Max. Displacement (cm³/rev) | 22 - 200 |
| Maximum Speed rpm | 2800 |
| Mounting Standard | SAE - C |

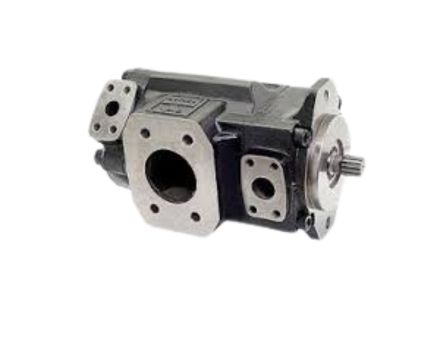

Double Vane Pumps - VT6GCC
| Model No. | VT6GCC |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 1.32 - 12.20 |
| Max. Displacement (cm³/rev) | 22 - 200 |
| Maximum Speed rpm | 2800 |
| Mounting Standard | R.17 - 102 |

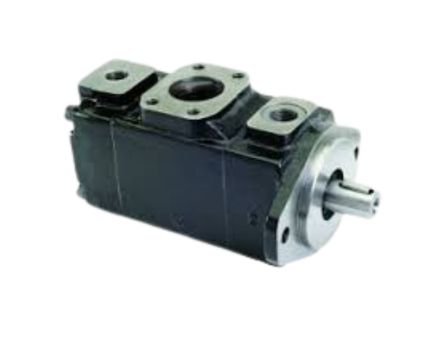

Double Vane Pumps - VT6DCM
| Model No. | VT6DCM |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 3.56 - 17.75 |
| Max. Displacement (cm³/rev) | 59.0 - 290 |
| Maximum Speed rpm | 2500 |
| Mounting Standard | SAE - C |

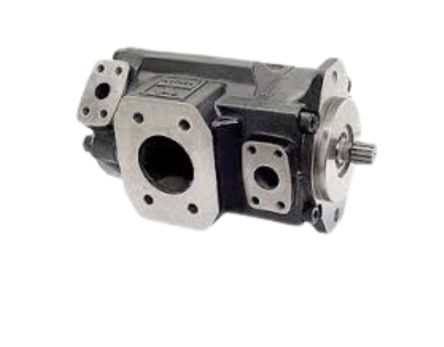

Double Vane Pumps - VT6ECM
| Model No. | VT6ECM |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 8.73 - 22.56 |
| Max. Displacement (cm³/rev) | 143 - 370 |
| Maximum Speed rpm | 2200 |
| Mounting Standard | SAE - C |

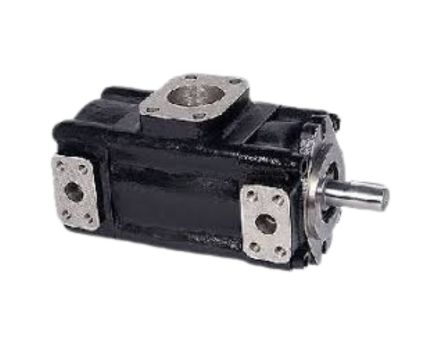

Double Vane Pumps - VT6EDM
| Model No. | VT6EDM |
| Maximum Pressure (psi) | 3500 |
| Maximum Pressure (bar) | 240 |
| Max. Displacement (in³/rev) | 11.0 - 28.06 |
| Max. Displacement (cm³/rev) | 180 - 460 |
| Maximum Speed rpm | 2200 |
| Mounting Standard | SAE - C |
Double Vane Pumps - VT7BB / VT7BBS
| Model No. | VT7BB / VT7BBS |
| Maximum Pressure (psi) | 4650 |
| Maximum Pressure (bar) | 320 |
| Max. Displacement (in³/rev) | 0.67 - 6.10 |
| Max. Displacement (cm³/rev) | 12 - 100 |
| Maximum Speed rpm | 3600 |
| Mounting Standard | SAE - B |

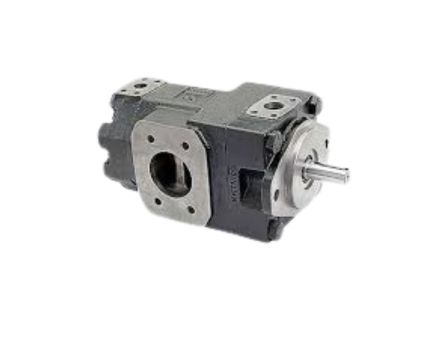

Double Vane Pumps - VT7QCC
| Model No. | VT7QCC |
| Maximum Pressure (psi) | 4350 |
| Maximum Pressure (bar) | 300 |
| Max. Displacement (in³/rev) | 1.32 - 12.20 |
| Max. Displacement (cm³/rev) | 22 - 200 |
| Maximum Speed rpm | 3000 |
| Mounting Standard | SAE - B / SAE - C |

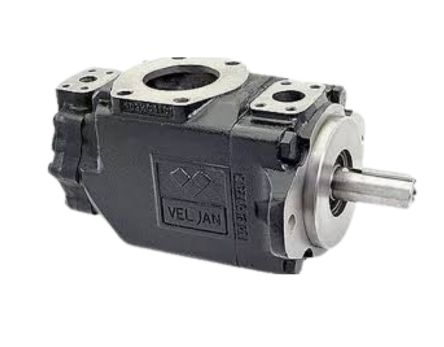

Double Vane Pumps - VT7DB / VT7DBS
| Model No. | VT7DB / VT7DBS |
| Maximum Pressure (psi) | 4350 |
| Maximum Pressure (bar) | 300 |
| Max. Displacement (in³/rev) | 3.03 - 12.69 |
| Max. Displacement (cm³/rev) | 50 - 280 |
| Maximum Speed rpm | 2500 |
| Mounting Standard | SAE - C |

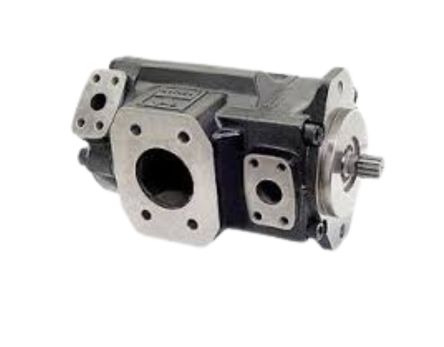

Double Vane Pumps - VT7QDC
| Model No. | VT7QDC |
| Maximum Pressure (psi) | 4350 |
| Maximum Pressure (bar) | 300 |
| Max. Displacement (in³/rev) | 3.34 - 15.74 |
| Max. Displacement (cm³/rev) | 55 - 258 |
| Maximum Speed rpm | 2500 |
| Mounting Standard | SAE - C |

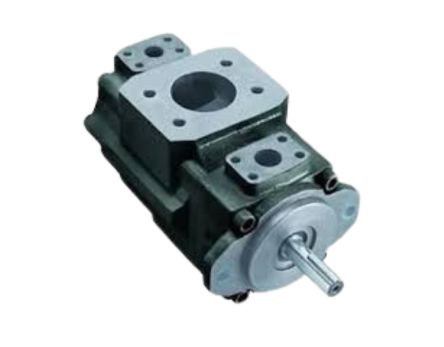

Double Vane Pumps - VT7DD / VT7DDS
| Model No. | VT7DD / VT7DDS |
| Maximum Pressure (psi) | 3600 |
| Maximum Pressure (bar) | 250 |
| Max. Displacement (in³/rev) | 5.36 - 19.26 |
| Max. Displacement (cm³/rev) | 88 - 316 |
| Maximum Speed rpm | 2500 |
| Mounting Standard | SAE - C |

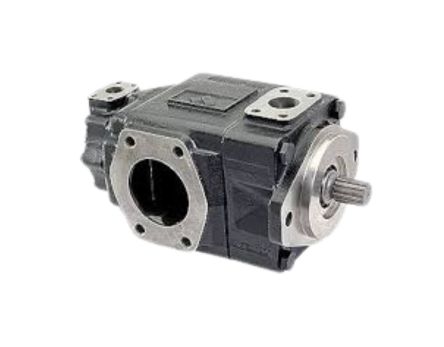

Double Vane Pumps - VT7EB
| Model No. | VT7EB |
| Maximum Pressure (psi) | 4350 |
| Maximum Pressure (bar) | 300 |
| Max. Displacement (in³/rev) | 8.42 - 19.45 |
| Max. Displacement (cm³/rev) | 138 - 320 |
| Maximum Speed rpm | 2200 |
| Mounting Standard | SAE - C |
Double Vane Pumps - VT7QEC
| Model No. | VT7QEC |
| Maximum Pressure (psi) | 4350 |
| Maximum Pressure (bar) | 300 |
| Max. Displacement (in³/rev) | 8.73 - 22.56 |
| Max. Displacement (cm³/rev) | 143 - 370 |
| Maximum Speed rpm | 2200 |
| Mounting Standard | SAE - C |

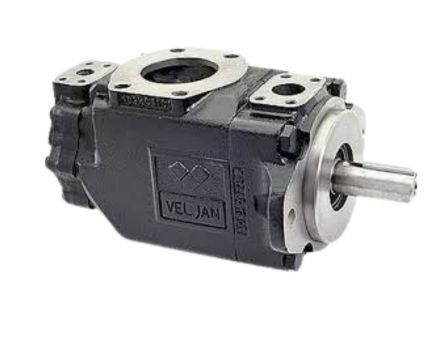

Double Vane Pumps - VT7ED / VT7EDS
| Model No. | VT7ED / VT7EDS |
| Maximum Pressure (psi) | 3600 |
| Maximum Pressure (bar) | 250 |
| Max. Displacement (in³/rev) | 10.7 - 26 |
| Max. Displacement (cm³/rev) | 176 - 427 |
| Maximum Speed rpm | 2200 |
| Mounting Standard | SAE - C |

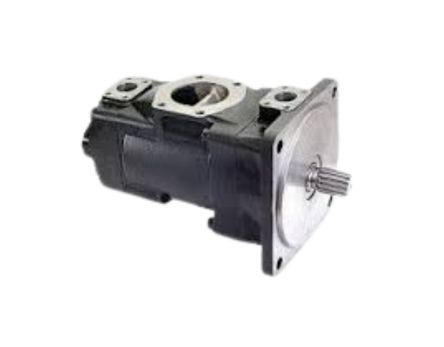

Double Vane Pumps - VT7EE / VT7EES
| Model No. | VT7EE / VT7EES |
| Maximum Pressure (psi) | 3500 |
| Maximum Pressure (bar) | 240 |
| Max. Displacement (in³/rev) | 16.1 - 32.80 |
| Max. Displacement (cm³/rev) | 264 - 540 |
| Maximum Speed rpm | 2200 |
| Mounting Standard | ISO / SAE - E |
Double Vane Pumps - VT67BB
| Model No. | VT67BB |
| Maximum Pressure (psi) | 4350 |
| Maximum Pressure (bar) | 300 |
| Max. Displacement (in³/rev) | 0.35 - 3.05 |
| Max. Displacement (cm³/rev) | 12 - 100 |
| Maximum Speed rpm | 2800 |
| Mounting Standard | SAE - B |

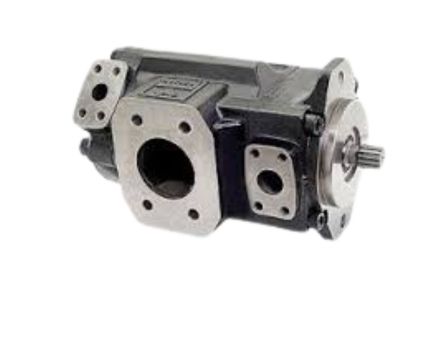

Double Vane Pumps - VT67CB
| Model No. | VT67CB |
| Maximum Pressure (psi) | 4350 |
| Maximum Pressure (bar) | 300 |
| Max. Displacement (in³/rev) | 1.01 - 9.15 |
| Max. Displacement (cm³/rev) | 17 - 150 |
| Maximum Speed rpm | 2800 |
| Mounting Standard | SAE - B |

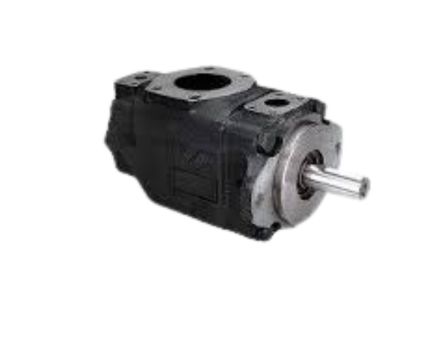

Double Vane Pumps - VT67DB
| Model No. | VT67DB |
| Maximum Pressure (psi) | 4350 |
| Maximum Pressure (bar) | 300 |
| Max. Displacement (in³/rev) | 3.25 - 14.7 |
| Max. Displacement (cm³/rev) | 54 - 240 |
| Maximum Speed rpm | 2500 |
| Mounting Standard | SAE - C |
Double Vane Pumps - VT67DC
| Model No. | VT67DC |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 2.68 - 9.64 |
| Max. Displacement (cm³/rev) | 44 - 156 |
| Maximum Speed rpm | 2500 |
| Mounting Standard | SAE - C |

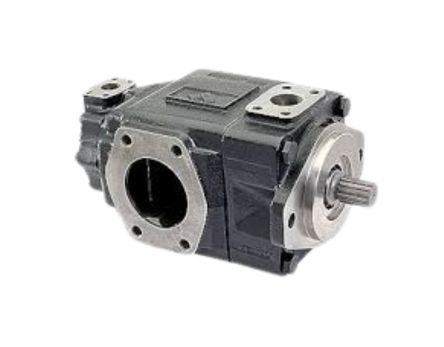

Double Vane Pumps - VT67EB
| Model No. | VT67EB |
| Maximum Pressure (psi) | 4350 |
| Maximum Pressure (bar) | 300 |
| Max. Displacement (in³/rev) | 8.42 - 19.45 |
| Max. Displacement (cm³/rev) | 138 - 320 |
| Maximum Speed rpm | 2200 |
| Mounting Standard | SAE - C |
Double Vane Pumps - VT67EC
| Model No. | VT67EC |
| Maximum Pressure (psi) | 4000 |
| Maximum Pressure (bar) | 275 |
| Max. Displacement (in³/rev) | 8.73 - 22.5 |
| Max. Displacement (cm³/rev) | 143 - 370 |
| Maximum Speed rpm | 2200 |
| Mounting Standard | SAE - C |
