| Tube O.D. | A THREAD |
S1 Hex |
S2 Hex |

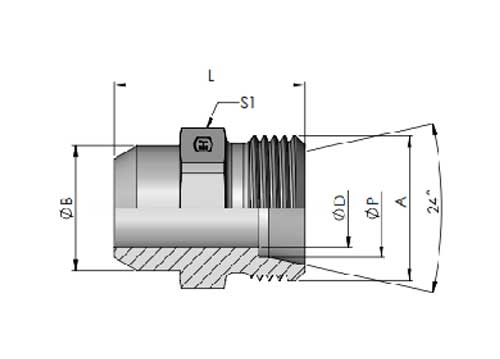

L | ØB | ØD DRILL |
ØP | L3 | Body Part Number | Assembly Part Number | Torque N-m |
Working pressure in Bar |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | M12X1.5-6g | 12.00 | 14.00 | 21.00 | 10.00 | 4.00 | 6.00 | 29.00 | XAS06L | AS06L | 13-15 | 250 |
| 8 | M14X1.5-6g | 14.00 | 17.00 | 23.00 | 12.00 | 6.00 | 8.00 | 31.00 | XAS08L | AS08L | 15-18 | 250 |
| 10 | M16X1.5-6g | 17.00 | 19.00 | 25.00 | 14.00 | 8.00 | 10.00 | 33.00 | XAS10L | AS10L | 25-28 | 250 |
| 12 | M18X1.5-6g | 19.00 | 22.00 | 25.00 | 16.00 | 10.00 | 12.00 | 33.00 | XAS12L | AS12L | 27-30 | 250 |
| 15 | M22X1.5-6g | 22.00 | 27.00 | 29.00 | 19.00 | 12.00 | 15.00 | 37.00 | XAS15L | AS15L | 50-60 | 250 |
| 18 | M26X1.5-6g | 27.00 | 32.00 | 31.00 | 22.00 | 15.00 | 18.00 | 40.00 | XAS18L | AS18L | 60-75 | 160 |
| 22 | M30X2.0-6g | 32.00 | 36.00 | 36.00 | 27.00 | 19.00 | 22.00 | 45.00 | XAS22L | AS22L | 85-105 | 160 |
| 28 | M36X2.0-6g | 41.00 | 41.00 | 38.00 | 32.00 | 24.00 | 28.00 | 47.00 | XAS28L | AS28L | 120-140 | 100 |
| 35 | M45X2.0-6g | 46.00 | 50.00 | 43.00 | 40.00 | 30.00 | 35.00 | 54.00 | XAS35L | AS35L | 170-190 | 100 |
| 42 | M52X2.0-6g | 55.00 | 60.00 | 46.00 | 46.00 | 36.00 | 42.00 | 58.00 | XAS42L | AS42L | 190-230 | 100 |
AS-L Welding Connector: Precision and Reliability in Hydraulic Systems
The AS-L Welding Connector is a key component in the L-series, meticulously designed to provide high-performance and durable welding connections for a wide range of industrial applications. Available in various tube outer diameters and offered in both assembly and body-only configurations, the AS-L Welding Connector ensures flexibility and optimal performance in your hydraulic and fluid transfer systems.
Key Specifications
- Category : L-series
- TUBE O.D : 06, 08, 10, 12, 15, 18, 22, 28, 35, 42
- Part Type : Assembly, Bodyonly
Additional Information
| Material | Suffix surface and material | Example |
|---|---|---|
| Steel ,Zinc plated chrome (VI)-free | XAS06L | |
| Steel ,Zinc nickel plated | ZiNi | XAS06L-ZiNi |
| Stainless Steel-SS316 Ti | SST | XAS06L-SST |
| Stainless Steel-SS316 | SS316 | XAS06L-SS |
| Stainless Steel-SS304 | SS304 | XAS06L-S |
Why Choose G.S. Hydraulics?
Choosing the AS-L Welding Connector means investing in a component that excels in precision, durability, and versatility. Its robust construction and precision engineering ensure leak-proof, corrosion-resistant welding connections that perform reliably under the most demanding conditions. Available in a variety of sizes and part types, the AS-L Welding Connector offers the flexibility to meet specific needs, making it a cost-effective and dependable choice for enhancing the performance and safety of your fluid systems.
Enhance your fluid connections with the high-quality and reliable AS-L Welding Connector. Contact us today to get a quote and learn more about our products and how they can benefit your specific application needs.
